How Was Abu Simbel Moved
In the 1960s, engineers faced an almost impossible problem: how do you move a 3,000-year-old temple carved directly into a solid mountainside, without destroying it, before a new dam floods it forever? The answer became one of the most remarkable feats of archaeological engineering in modern history. Here’s exactly how Abu Simbel was moved, why it had to happen, and how the team managed to preserve even the temple’s famous solar alignment in its new location.
The Abu Simbel Relocation: Quick Facts
Why Did Abu Simbel Need to Be Moved?
The Aswan High Dam and the Threat to Nubia
In the 1950s and 1960s, Egypt began construction of the Aswan High Dam, a massive engineering project designed to control the Nile’s flooding and generate hydroelectric power. The dam’s reservoir, Lake Nasser, would eventually stretch for hundreds of kilometers into southern Egypt and northern Sudan — directly submerging a significant stretch of ancient Nubia, including the site where Ramesses II’s temples at Abu Simbel had stood since around 1264–1244 BCE.
An International Rescue Effort
Recognizing the scale of the cultural loss at stake, UNESCO launched an international campaign in 1960 to save Abu Simbel and dozens of other threatened Nubian monuments. Engineers, archaeologists, and specialists from multiple countries contributed expertise and funding, ultimately raising roughly $40 million (a substantial sum at the time) to fund what became one of the most ambitious heritage preservation projects ever attempted. The campaign’s success is widely credited with helping establish the framework that later became UNESCO’s World Heritage program.
How Engineers Actually Moved the Temple
Step 1: Building a Cofferdam
Before any cutting could begin, engineers constructed a temporary cofferdam around the site to hold back the rising waters of Lake Nasser during the multi-year relocation process, buying the time needed to complete the delicate work without the site being prematurely flooded.
Step 2: Cutting the Temple Into Blocks
Rather than attempting to move the temple as a single structure, engineers carefully cut both the Great Temple and the Small Temple into more than 1,000 individual blocks, some weighing as much as 30 tons. Each block was meticulously numbered and mapped according to its exact original position, a critical step to ensure the temple could be reassembled with the same precision as it was originally carved.

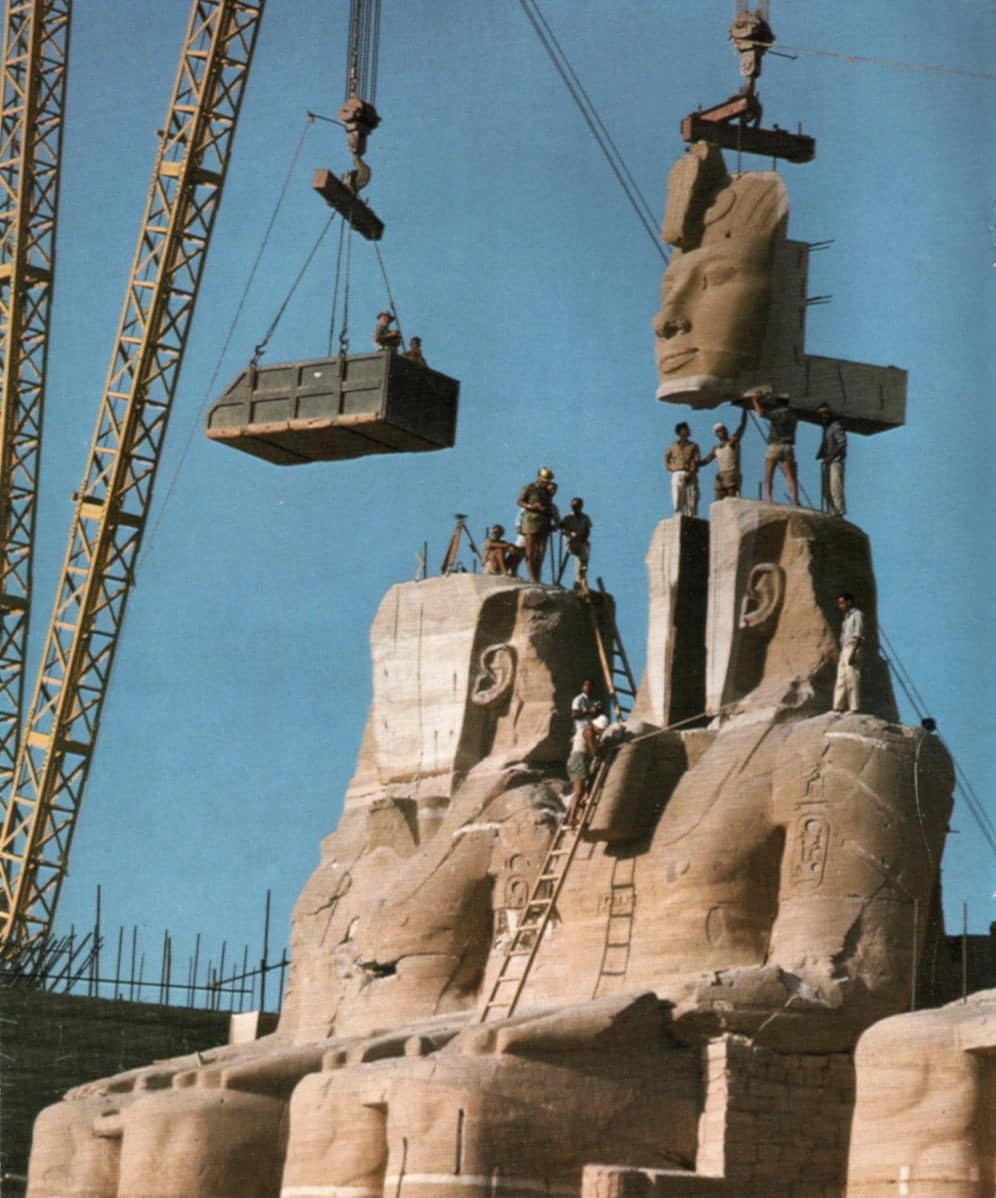

Step 3: Transporting the Blocks
The numbered blocks were lifted using cranes and transported to a new site selected roughly 65 meters higher in elevation and about 200 meters back from the temple’s original location — high enough to remain permanently above the waters of Lake Nasser.
Step 4: Reassembling the Temple
At the new site, engineers reconstructed the temples block by block, following the same numbering system used during disassembly, essentially reassembling an enormous 3D puzzle with historical and cultural stakes attached to every piece. Remarkably, the reassembled temple’s surfaces were finished so carefully that the joins between blocks are barely visible to visitors today.
Step 5: Recreating the Artificial Mountain
Because the original temples had been carved directly into a natural cliff face, engineers also needed to recreate an artificial mountain around the reassembled structure, using a specially engineered dome and rockwork to replicate the original setting and preserve the temple’s visual and structural context.
Preserving the Solar Alignment
One of the most impressive aspects of the relocation was the effort to preserve Abu Simbel’s famous twice-yearly solar phenomenon, in which sunlight travels the length of the temple to illuminate statues in the inner sanctuary. Engineers worked to maintain the temple’s original orientation as precisely as possible during reconstruction. Some sources note the alignment now occurs approximately one day later than at the original site — a minor shift, but a testament to just how close the reconstruction came to replicating the ancient builders’ original astronomical precision. For more on this phenomenon, see our guide to the Abu Simbel Sun Festival.
The Legacy of the Relocation Project
A Model for Heritage Preservation
The Abu Simbel relocation is widely regarded as a landmark moment in the history of archaeological preservation, demonstrating that even monuments of extraordinary scale and fragility could be saved through careful international collaboration. Its success directly influenced the creation of UNESCO’s World Heritage Convention in 1972, which now protects cultural and natural sites around the world.
Other Nubian Monuments Saved
Abu Simbel wasn’t the only monument rescued during this campaign; several other Nubian temples, including Philae Temple, were also relocated to protect them from Lake Nasser’s rising waters, preserving a significant portion of ancient Nubia’s architectural heritage that would otherwise have been lost entirely.
Relocation Timeline
Frequently Asked Questions
Why was Abu Simbel moved?
The temples had to be relocated to save them from being permanently submerged by Lake Nasser, the reservoir created by the construction of the Aswan High Dam in the 1960s.
How many pieces was Abu Simbel cut into?
Engineers cut both temples into more than 1,000 individual numbered blocks, some weighing up to 30 tons each, to enable precise transport and reassembly.
Who paid for and organized the relocation?
UNESCO led an international campaign involving multiple countries’ engineers and archaeologists, raising approximately $40 million to fund the project.
How far was Abu Simbel moved?
The temples were relocated roughly 65 meters higher in elevation and about 200 meters back from their original position, placing them safely above the waters of Lake Nasser.
Did the relocation affect the temple’s famous Sun Festival alignment?
The alignment was preserved with remarkable accuracy, though some sources note it now occurs approximately one day later than in the temple’s original location.
How long did the relocation take?
The full project, from planning to completed reconstruction, spanned roughly 1964 to 1968, following UNESCO’s 1960 launch of the international rescue campaign.
Were other monuments relocated along with Abu Simbel?
Yes, several other Nubian monuments, including Philae Temple, were also moved during the same era to protect them from Lake Nasser’s rising waters.
Final Thoughts
The relocation of Abu Simbel stands as one of the most impressive engineering and preservation achievements of the 20th century — a project that treated a 3,000-year-old temple with the same precision and care its original builders once applied to carving it from the mountainside in the first place. Seeing the temple today, it’s remarkable to think that everything visitors admire was once dismantled, transported, and rebuilt piece by piece to save it from the rising waters of Lake Nasser.
